Energy-Saving Automatic Cross-Linked PE Heat Shrink Sleeve Manufacturing Line with 0.5-3mm Sleeve Thickness

The Heat Shrink Sleeve production line is a modern production system integrating high efficiency and energy conservation with intelligent control. It consists of an LDPE base material extrusion production line, a heat-shrink tape gluing production line, forming processing equipment, and auxiliary equipment.

The entire set of units takes low energy consumption and low noise as its core advantages, supports precise speed regulation production, is equipped with an intelligent operating system, and meets the production requirements of high-standard anti-corrosion materials. This type of product has three different models:

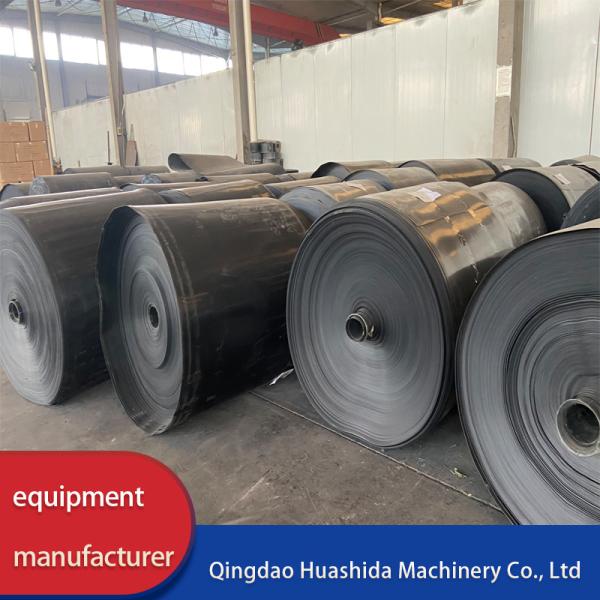

1. The PE back film extrusion line produces PE film to meet clients' requirements,
2. sent the PE back film to a professional irradiation company to do radiation crosslinking treatment with the right radiation dose, so that the sleeve has Good fire resistance and tensile strength;
3. Put the irradiated back film into the heat-shrinkable sleeve adhesive coating production line for adhesive coating. In this process, the heat-shrinkable sleeve substrate is first stretched twice to ensure that the heat-shrinkable sleeve has a good shrinkage rate, and then a unique formula of hot melt adhesive is extruded by a professional reaction vessel and bonded with the back film. The finished product is peeled off. high strength.

Designed for pipeline joint protection, pipe rehabilitation, and wrapping applications, with typical uses including:

• Oil & gas transmission pipelines

• PU insulated pipes

• 3PE/2PE coated steel pipes

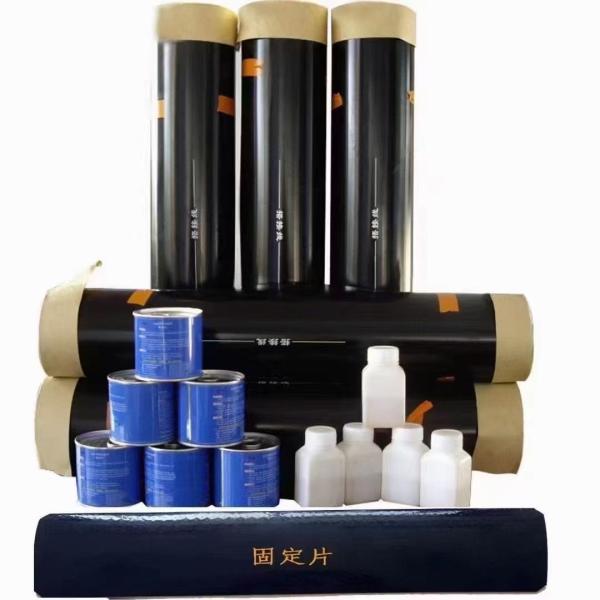

Heat shrinkable sleeve for Oil & Gas Pipe

Composition

1. PE back film extrusion Line
   • Single screw extruder
   • Die head
   • Three Calender
   • Roll temperature controlling system
   • Cooling rack
   • Hauling off
   • Rewinding machine
2. Adhesive Mixing and Coating Line
   • Unpowered uncoil device
   • Reactor
   • Adhesive coating system
   • Cooling water tank
   • Haul off
   • Coiler platform.
3. For a three-layer fiber-reinforced heat-shrink sleeve, we need to add below equipments
   • Fiber uncoiling device
   • Fiber heating device
   • Fiber flattening device

• Fast shrinkage speed
• good waterproof performance
• good anti-corrosive performance
• long service life, convenient transportation, and fast construction
• using pure PE material and imported adhesive to ensure the quality
• Supply full completed production solution: design, installation, commissioning, training
• Share your 389 sets of production experience from all over the world
• Having 9 professional senior engineers
• Having a high-end plastic machinery equipment expert workstation in China

Founded in 2003, Qingdao Huashida Machinery Co., Ltd. has over 20 years of professional manufacturing experience in PUR spray PE wrap insulated pipe production lines, polyurethane insulated pipe making machines, 3PE anti-corrosion pipe production lines, large-diameter underground pipeline equipment, and plastic pipe fitting production machinery.

We maintain long-term technical cooperation with Beijing University of Chemical Technology, Qingdao University of Technology, and other national research institutions. By integrating advanced global technologies and standards, Huashida Machinery has grown to become one of the top 3 manufacturers in China's pipeline equipment industry.

Our high-quality pipeline production machines are widely trusted by global customers and exported to Saudi Arabia, Kazakhstan, Uzbekistan, the UAE, Turkey, Russia, and more than 60 countries and regions worldwide.
